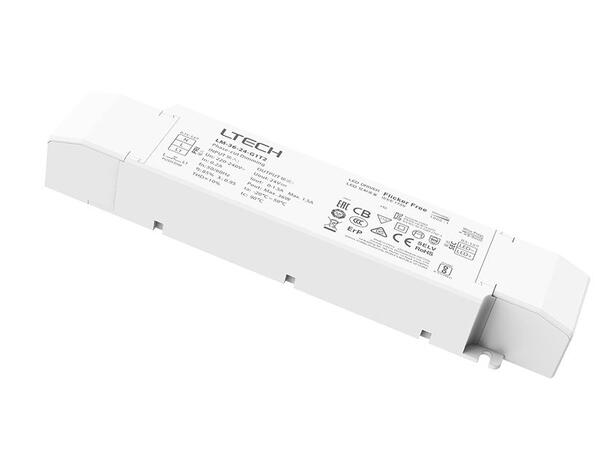

LED driver FD 24V 0-36W Fasedim/impuls ELC

LED driver FD 24V 0-36W Fasedim/impuls

ELC

Varenr: 125358
Alt. varenr 6604347
Lagerstatus:
  • LED Driver fasedimbar
  • Inngangsspenning 200 - 240V AC 50/60 Hz
  • Utgangsspenning 24V DC
  • Effekt 0-36W
  • Dimmes via Fasedim / impulsdim
  • Dimbar 0-100%
  • PWM frekvens 3600Hz
  • Minnefunksjon ved impulsdimming
  • Omgivelsestemperatur Ta: -20 ... +50 °C
  • Kapslingsgrad IP20
  • Beskyttelsesklasse II
  • 5 års garanti
  • Levetid 50.000 timer
  • Mål LxBxH: 210 x 43 x 30 mm
  • Maks antall pr. sikringskurs = 60stk C16
  • Soft start og dimmer inn for en bedre visuell opplevelse

Sertifiseringer: CE; ENEC, CB, UKCA, TUV

2014/30/EU Electromagnetic Compatibility Directive (EMC)

  • EN61000-3-2 Class C
  • EN61000-3-3
  • EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6; EN61000-4-8; EN61000-4-11
  • EN61547:2009
  • IEC62386
  • EN55024:2010
  • EN55015

2011/65/EU Restriction of Hazardous Substances Directive (RoHS) + 2015/863/EU



2014/35/EU Low Voltage Directive (LDV)

  • EN 61347-1
  • EN 61347-2-13
