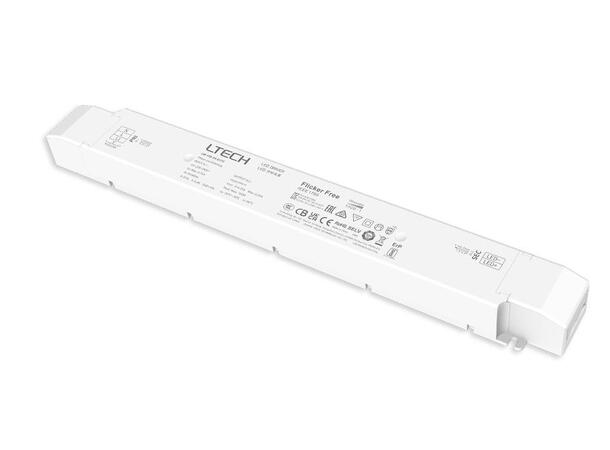

LED Driver fasedimbar
Inngangsspenning 200 - 240V AC 50/60 Hz
Utgangsspenning 24V DC
Effekt 0-150W
Dimmes via Fasedim / impulsdim
Dimbar 0-100%
PWM frekvens 3600Hz
Minnefunksjon ved impulsdimming
Omgivelsestemperatur Ta: -20 ... +50 °C
Kapslingsgrad IP20
Beskyttelsesklasse II
5 års garanti
Levetid 50.000 timer
Mål LxBxH: 352 x 43 x 30 mm
Maks antall pr. sikringskurs = 9stk. (C16A)
Lineær dimmekurve
Soft start og dimmer inn for en bedre visuell opplevelse
Sertifiseringer: CE; ENEC, CB, UKCA, TUV
2014/30/EU Electromagnetic Compatibility Directive (EMC)
- EN55015
- EN61000-3-2 Class C
- EN61000-3-3
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- EN61547:2009
2009/125/EC EcoDesign requirements for energy-related products Directive (ErP) + (EU) 2019/2020
2011/65/EU Restriction of Hazardous Substances Directive (RoHS) + 2015/863/EU
2014/35/EU Low Voltage Directive (LDV)
