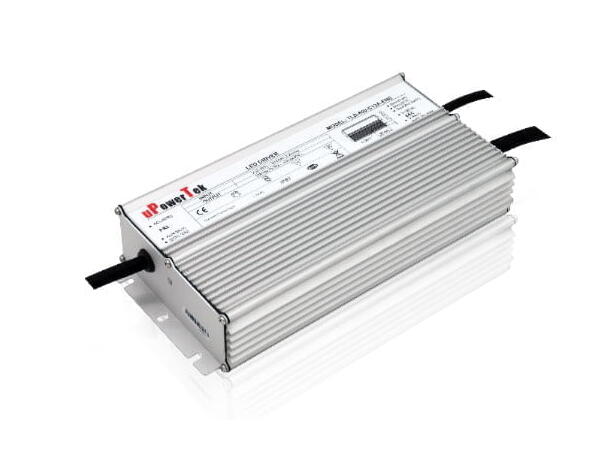

• LED driver spenningsstyrt
• Inngansspenning 180-305V AC, 50-60Hz
• Utgangsspenning 48V DC
• Maks effekt 800VA
• Effektfaktor >0.9 ved 60-100% last
• Maks 2 drivere per C16A sikring
• Levetid 100 000 timer ved maks 75 grader Tc
• Ikke dimbar
• Mål LxBxH: 262 x 125 x 49 mm

Standards for LED Equipment and Control Gear:

1. UL 8750 - Light emitting diode (LED) equipment for use in lighting products.
2. UL 1012 - Power units other than class 2.
3. IEC 61347-1 - Lamp control gear Part 1: General and safety requirements.
4. IEC 61347-2-13 - Lamp control gear Part 2-13: Particular requirement for d.c. or a.c. supplied electronic control gear for LED modules.
5. IEC 62384 - DC or AC supplied electronic control gear for LED modules - Performance requirements.

EMC Standards Description:

1. IEC 55015 - Conducted emission test & radiated emission test.
2. IEC 61000-3-2 - Harmonic current emissions; Class C.
3. IEC 61000-3-3 - Voltage fluctuations & flicker.
4. FCC Part 15 - ANSI C63.4:2009 Class B.
5. IEC 61000-4-2 - Electrostatic discharge (ESD): 8 kV air discharge, 4 kV contact discharge.
6. IEC 61000-4-3 - Radio frequency electromagnetic field susceptibility test (RS).
7. IEC 61000-4-4 - Electrical fast transient (EFT).
8. IEC 61000-4-5 - Surge immunity test.
9. IEC 61000-4-6 - Conducted radio frequency disturbances test (CS).
10. IEC 61000-4-8 - Power frequency magnetic field test.
11. IEC 61000-4-11 - Voltage dips.
12. IEC 61547 - Electromagnetic immunity requirements apply to lighting equipment.
